Multi-Factor Authentication (MFA) is a method which is used to strengthen the security of a file, website, etc, and adds extra protection to the sign in process.
It is an authentication method which allows the user access to a website/application once the user has provided the two (or more) pieces of information to verify identity;
WMDA uses passwords and authentication applications as the two, alongside texts/calls.
End User guide
Valid authentication methods for WMDA services are passwords, authentication applications and hardware tokens.
This document is a guide to help aid users of the system to set up the required security verification methods to access the Search & Match Service.
Initial setup:
| Step | Description | Image |
|---|
| 1 | to: Home page - WMDA Web Services and click on "Partner Sign In" or to this web page. You can also go to https:// portal.wmda.info/ and click on: "Login Search & Match Front End |  Image Removed
| 2 | " followed by "Forgot your password?"
|  Image Added
 Image Added
|
| 2 | Follow the steps to verify your e-mail address and set up your initial password. |
 Image Added
| Please login with your email, and use the password that was provided to you by WMDA support;
A username and email will be emailed to you and you must change is when you first sign in (the "change password" functionality is also available if you forget your password).
Click “Sign In” (note, the struck out items below won’t work, so please don’t click them).Search & Match Front End  Image Removed
| Possible problems :  Image Removed
|
| 3 | Enter a new password in the upper text box and confirm it in the lower text box
[apologies for no explanatory text on this screen at this point] | Search & Match Front End  Image Removed
|
|
 Image Added
|
| 4 | Please read the content and click "Accept" on the screen below. | Search & Match Front End  Image Removed
|
 Image Added
|
| 5 | Now, you will need to set up “Multi Factor Authentication”.
Click Next. | Search & Match Front end  Image Removed Image Added
|
| 6 | Choose your MFA method. You may choose - using an authenticator app on your smartphone
- using an SMS on your mobile phoneusing a hardware token
| - We recommend Microsoft Authenticator if it is available in your region and on your smartphone/device if you have one. Download (from your smartphone/device) and install it if you don’t already have it. It makes for the easiest MFA login experience.
- Alternative MFA tools are Authy or Google Authenticator, and there may be other options in your region
(Please let us know so we can add them to our documentation!)
If you don’t have access to a Smartphone, and SMS service is better in your area than 3G/4G/5G coverage, then you can receive MFA codes via SMS. Click “I want to set up a different method”.
Note that there is a small cost to the WMDA to use SMS for MFA, so please use this option only if necessary.
If you are not allowed to use a smartphone you may use a
hardware token tokens that supports TOTP.
| Expand |
|---|
These devices work normally Hardware tokens are devices that work independently from a PC or Phone.
| Expand |
|---|
| title | Read more about hardware tokens .... |
|---|
| , or sometimes they use a companion app. We recommend only to use only certified tokens, eg . from https://token2.eu Tokens should minimally support TOTP, this is a single use six digit code that is uniquely bound to your account and changes every 30 seconds.

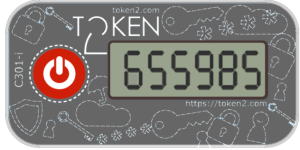

Examples of hardware tokens :

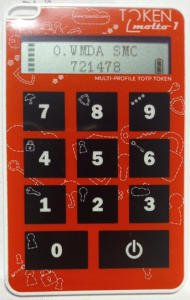

Example use : Token2 Molto
This type of device is programmed once. Once programmed they provide the TOTP code without the use of a PC or mobile phone. You can program these devices Token2 Molto : You program this device with either a mobile phone that has NFC, or via USB, depending on the model.
Depending on model it may Some models allow to store keys for up to 10 different accounts.
Some There are tokens that need a mobile phone with NFC and an companion app to generate the TOTP code. WMDA does not recommend these types and cannot support that.
WMDA tested tokens that are programmable over NFC and USB.tokens. Contact support@wmda.info if you have questions selecting the correct token for your situation.
|
Software token on desktop. There are various desktop applications available for Windows and MAC that provide TOTP tokens. These include: - Password managers such as Bitwarden, Lastpass and 1Password. In some cases you may need to have a paid subscription. Please check its documentation for instructions on how to set this up.
- Standalone applications such as KeepassXC and Authy. Please check its documentation for instructions on how to set this up.
- SMS is no longer a valid option as Microsoft will soon no longer allow this. Please see Security improvements SMS MFA users WMDA services
|
| 7 | Proceed with setting up your second factor method:
| SP Horizontal nav group |
|---|
| outline | true |
|---|
| color | blue#B3D4FF |
|---|
| | SP Horizontal nav item |
|---|
| anchor | 1713301889 |
|---|
| name | Microsoft Authenticator |
|---|
| If you want to use Microsoft authenticator :
|
| SP Horizontal nav item |
|---|
| anchor | 267714724 |
|---|
| name | Other Authenticator app |
|---|
| If you want to use another authentication app click the "I want to use a different authenticator app",
and then select "Authenticator app" from the drop down menu and follow the proceeding instructions.
Any authenticator app that is TOTP compliant will be valid to generate codes. Some well known are Google Authenticator, Authy, Aegis
|
| SP Horizontal nav item |
|---|
| anchor | 1793883711 |
|---|
| name | Hardware Token |
|---|
| If you want to use a programmable TOTP token, click the "I want to use a different authenticator app"
and then select "Authenticator app" from the drop down menu and follow the proceeding instructions.
|
| SP Horizontal nav item |
|---|
| anchor | 1093657751 |
|---|
| icon | icon-sp-laptop |
|---|
| name | Software Token on desktop OS |
|---|

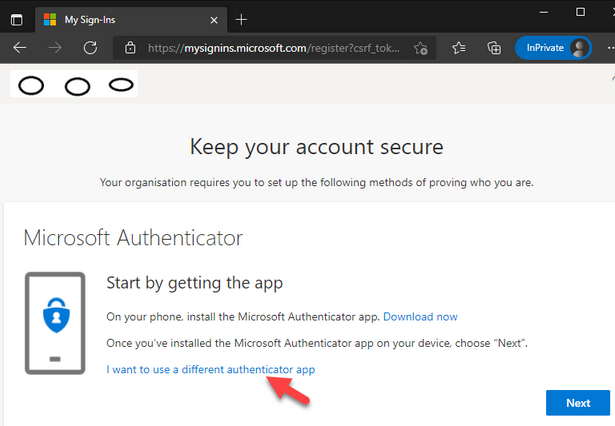

| If you want to use a software based TOTP token on your desktop, click the "I want to use a different authenticator app" Image Added
and then click on "Next"  Image Added
You will then see a QR code. If your software is able to scan it, then do that. If not, then click "Can't scan image?"  Image Added
You are then able to see the account name and the secret key. Copy the secret key to your desktop application.  Image Added
|
|
|
| 8 | Continue set up:
There are a few more screens to work through, which will vary according to which MFA approach you use.
| SP Horizontal nav group |
|---|
| outline | true |
|---|
| color | blue#B3D4FF |
|---|
| | SP Horizontal nav item |
|---|
| anchor | 1713301889 |
|---|
| name | Microsoft Authenticator |
|---|
| Open the Microsoft | Authenticator app and follow the instructions given. Firstly click the "+" symbol to add the account and choose the "Work or school account" option, then choose the "Scan QR code" option.  Image Added  Image Added
The app will then access your camera, allowing the user to scan the QR code displayed on the webpage on the computer (it is displayed once the user clicks "Next" on the webpage).  Image Added
Now the authenticator has been set up, head back to the webpage on the computer for the final confirmation. fix screenshots |
| SP Horizontal nav item |
|---|
| anchor | 291731345 |
|---|
| name | Other appsAuthenticator Apps |
|---|

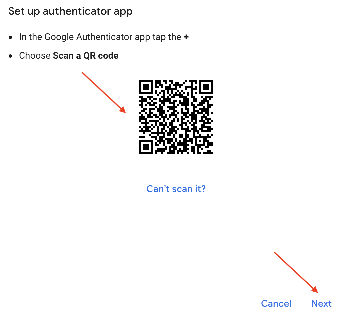

| For example Example : Google Authenticator Download the Google Authenticator app and open it up; click the multicoloured "+" and select "Scan a QR code".

The app will now ask for access to the phones camera to scan the QR code displayed on the webpage.

|
| SP Horizontal nav item |
|---|
| anchor | 1764331039 |
|---|
| name | Hardware token |
|---|
| Hardware tokens will need to be set up, either using NFC or USB.
You need a helper application for that.
In short it works like this :
1) put the token in "programming mode"
2) approach the token to your phone, the burner app will start
3) select "add a profile" , and scan the QR code with your phone.
4) burn the code in the token
Due to the diversity of tokens you may want to ask assistance to your IT department.
A sample of a procedure of an NFC programmable token can be found here :
https://www.token2.com/shop/page/hardware-tokens-for-azure-cloud-multi-factor-authentication
Please contact us if you have problems setting up your token.
|
|
|
| 9 | Check if the authenticator works
To ensure the MFA was set up correctly, the system will ask the user to verify the the authenticator with a verification code, which is displayed on the next page of the app.
|  Image Removed
|
Once all complete, you should be brought back to the original home page, and it should show your email in the top right. | Image Added |
| 10 | Logging in
When logging in, after having set up the MFA, the user will be prompted to approve the login, either by entering the code from your authenticator, or tapping the "Approve" pop up in your application (when using Microsoft authenticator) The Microsoft Authenticator app will show a notification like the one below - | |
...
